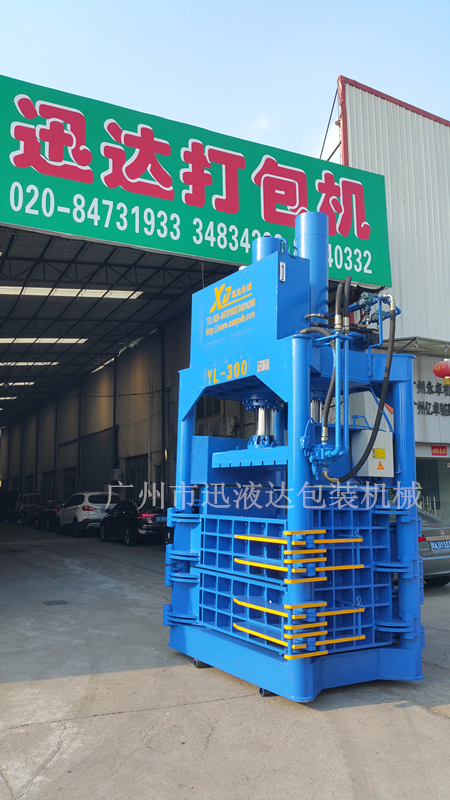

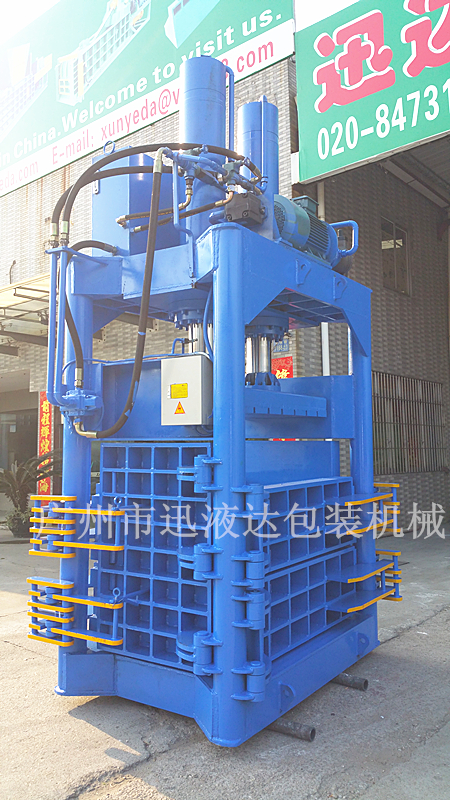

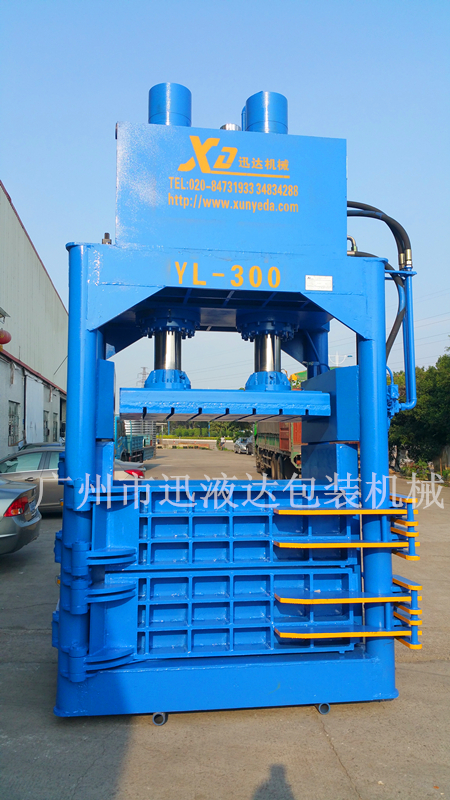

YL-300T Vertical Baler (New)

Brand: YL upright packing machine

Description: YL-300 vertical packing machine is specially designed to deal with the packaging of scrap metal, and a large amount of customers to design a packaging machine, with convenient operation, packing size, weight, high efficiency. The vane pump and piston pump functioning, greater pressure; the additional safety door latch, higher safety performance; the machine frame is high, to eliminate the damage problems caused by gravity machine; the larger pack size, adding four guide rods, the pressing plate stress balance, uniform design and low noise; the hydraulic circuit, high efficiency and low malfunction.

Product Details

型号                   YL-300T

电压                   200/380/415V

电机功率             30KW双轴马达

操作方式             手动 MANUAL

开门方式             6门打开 ALL OPEN

工作压力             20MPa

油缸内径             Ф270mm*2

活塞杆直径          Ф190mm*2

行程长度             1400mm

油泵效率             160cc/r

内箱尺寸(mm)      L1500*W900*H1800

包块尺寸(mm)      L1500*W900*H1000

包块重量             不锈钢:约3000-3500kg

捆线数量             7*2

工作效率             10000kg/h

机器重量              13000kg

机器尺寸(mm)      L2200*W1500*H4400
