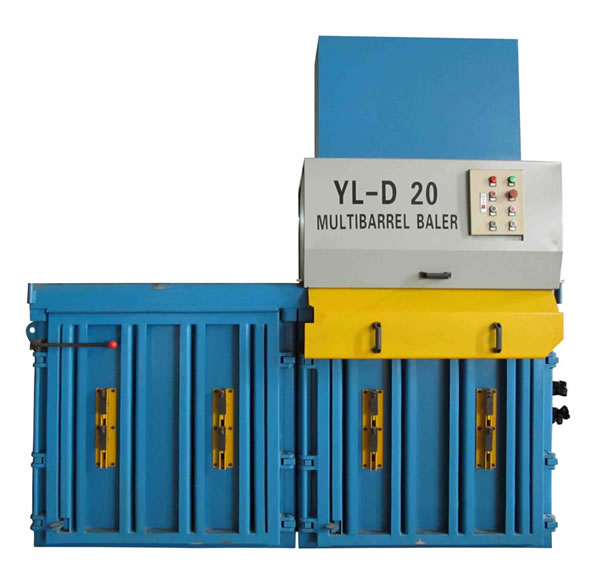

YD-20-2 multi barrel type packing machine

Brand: YD series multi barrel type packing machine

Description: YD series packaging machine using an operating system for controlling a plurality of machine barrel, thereby improving the production efficiency, save manpower. The machine volume is less, reducing the occupied area. This machine is applicable to plastic film, paper, carton, plastic bottle, PET packets but other than metal materials. Especially applicable to shopping malls warehouse. The machine has great advantage "with" a machine, is one of our latest products. The advantages of machine barrel is standard, can be composed of two, three or more barrel. The feeding mouth, low air thin material is particularly convenient. With automatic output package of function. Simple operation. The weight of the body is small, convenient to move.

Product Details

Model YD-20-2

Voltage 200V/380V/415V

Motor power 5.5KW

Operation manual

Open type rocker

Working pressure 16Mpa

Cylinder size with 80mm*2

The piston rod of length 800mm

The pump efficiency of 33cc/r

Block size L1100*W700*H800mm

Paper package weight: about 110-120KG

Packing line number 3

Mass density 180-200KG/m3
