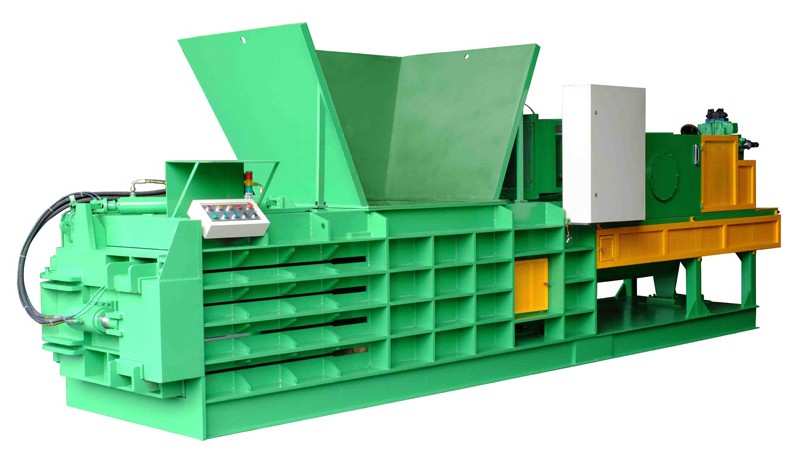

Brand: YW horizontal packing machine
Description: YW series horizontal packing machine for waste paper, plastic, circulation processing of PET plastic bottles and cans. This series of packing machine can be configured to run and can choose the hopper, conveyor belt or artificial feeding using customer needs according to the. We can also provide engineering design and help (including CAD drawings) to simplify their work and improve the overall efficiency of. Advantage The wide opening of the hopper for large area and hollow materials enter. Hydraulic drive has advantages of stable operation, high pressure and high efficiency. Beautiful appearance, compact structure, high performance, simple operation, safe and reliable. Pack size according to customer requirements to build!
Model YW-150T
Voltage 200/380/415V
Working pressure 17Mpa
Motor power 30KW
Master cylinder size with 320mm
Block size L1300*W1100*H830mm
A blanking hole size L1200*W1070mm
Machine dimension L6500*W1530*H2400mm
The package to slide (optional) L3000*W1200*H150mm
The noise of the machine 80dB
Cooler motor power 0.75kw
Machine net weight about13000kg
The efficiency of 3000-4000kg/hour
Fuel tank capacity: 1200L
Mass density 520-580kg/m3
