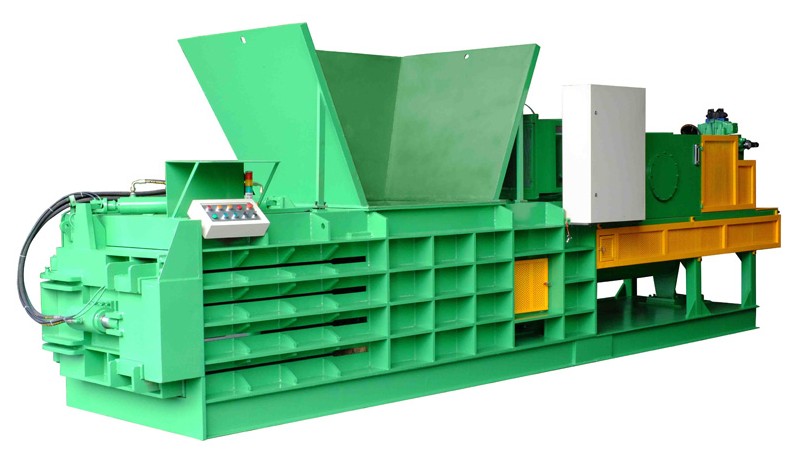

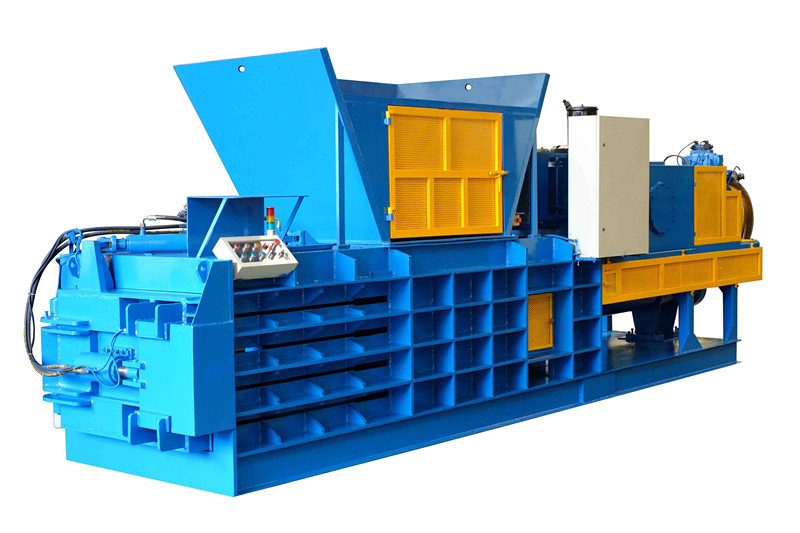

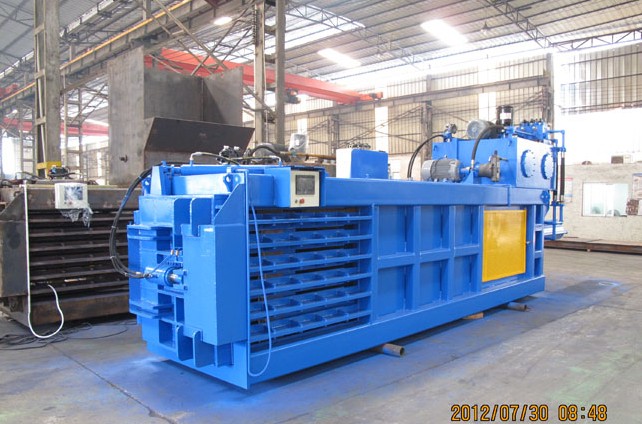

Brand: YW horizontal packing machine
Description: YW series horizontal packing machine for waste paper, plastic, circulation processing of PET plastic bottles and cans. This series of packing machine can be configured to run and can choose the hopper, conveyor belt or artificial feeding using customer needs according to the. We can also provide engineering design and help (including CAD drawings) to simplify their work and improve the overall efficiency of. Advantage The wide opening of the hopper for large area and hollow materials enter. Hydraulic drive has advantages of stable operation, high pressure and high efficiency. Beautiful appearance, compact structure, high performance, simple operation, safe and reliable. Pack size according to customer requirements to build!
Specifications
Model YW-50T
Voltage 200/380/415V
Working pressure 17Mpa
Motor power 15KW
Master cylinder size with 200mm
Block size L1000*W1000*H650mm
A blanking hole size L1000*W1000mm
Machine dimension L6250*W1400*H2200mm
The package to slide (optional) L3000*W1100*H150mm
The noise of the machine 80dB
Cooler motor power 0.75kw
Machine net weight About8000kg
The efficiency of 1200-1600kg/hour
Fuel tank capacity: 1000L
Mass density 400-450kg/m3
