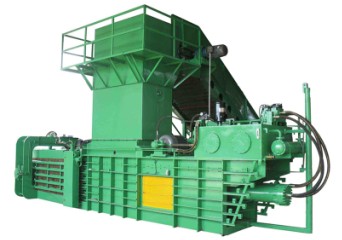

Automatic packing machine YZ-80T

Brand: YZ Automatic packing machine

Description: A series of YZ (automatic horizontal packing machine) especially suits the requirements of high efficient user. The machine specially used for packaging paper, cardboard, plastic film, carton and palm silk etc.. This series of machines can be under the control of PLC system automatic feeding, packaging, bundling. Scope of application: Carton plant and waste paper, waste paper processing. 1, automatic waste paper baler for environmental protection requirements, designed for paperboard, cartons and recycled materials recycling companies manufacturing professional design. The 2 locking design, can be allocated from the direction of the pressure. The 3.PLC control system, simple operation. The 4 storage box is provided with a paper feeding sensing infrared, the motor stops automatically adds no material, saving power. 5 baling length and density can be adjusted freely, packing speed, simple structure. 6 design easy to repair, low failure rate and easy cleaning and maintenance. The 7 independent computer full touch screen control panel, easy and convenient operation. Twisted pair and gearbox independent design, to prevent oil pollution damage, and easy cleaning wire threading system repair tool is simple, long mechanical life, unique mechanical design, the threading action accurate.

Product Details

Specifications

Model YL-80T

Voltage 200V/380V/415V

Motor power 30KW

Automatic operation mode

Block size L (free) *W1100*H1100

Cylinder size with 220mm

Blanking dimension L1460*W1060mm

The maximum working pressure of 800KN

Working pressure 17Mpa

The noise of 80 decibels

Fuel tank capacity of 900L

Packing line number 4

Mass density of 450 ~ 500KG/m3

Packaging capacity of 459 tons / hour

Machine weight 18000kg

Machine dimension L8660*W12000*H4120mm

Conveyor belt

Motor power 5.5KW

Reducer XWD6-59

The width of 1300mm

Angle of 33 °

Cooling system

Motor power 0.25KW

Cooler model YW-860-3

Cooling tower size with 850*H1650mm
