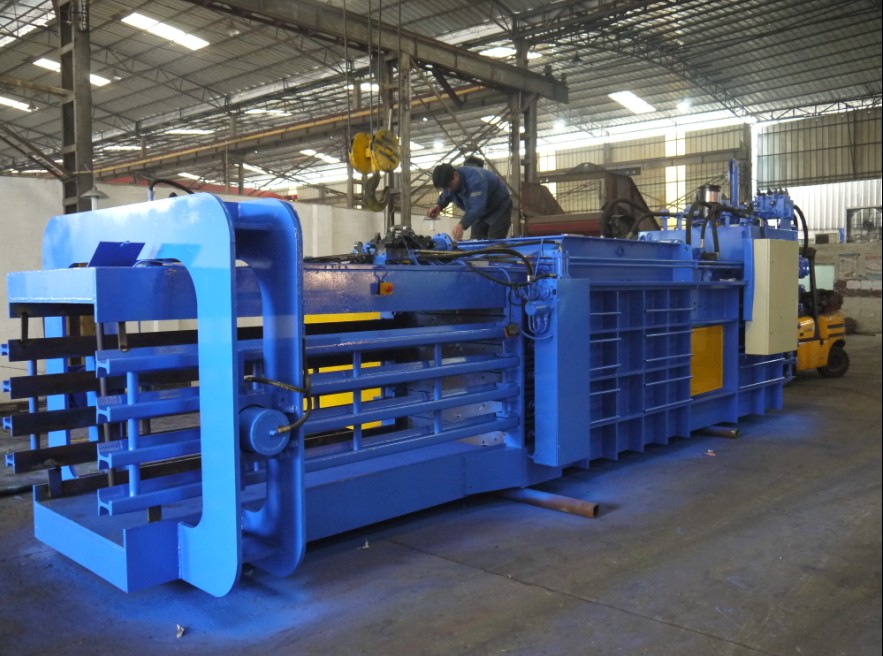

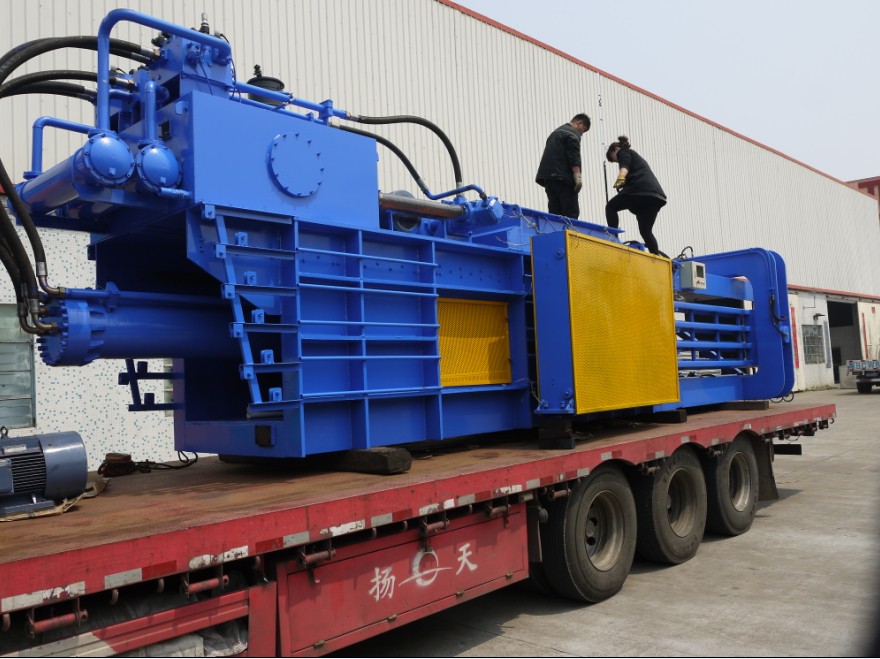

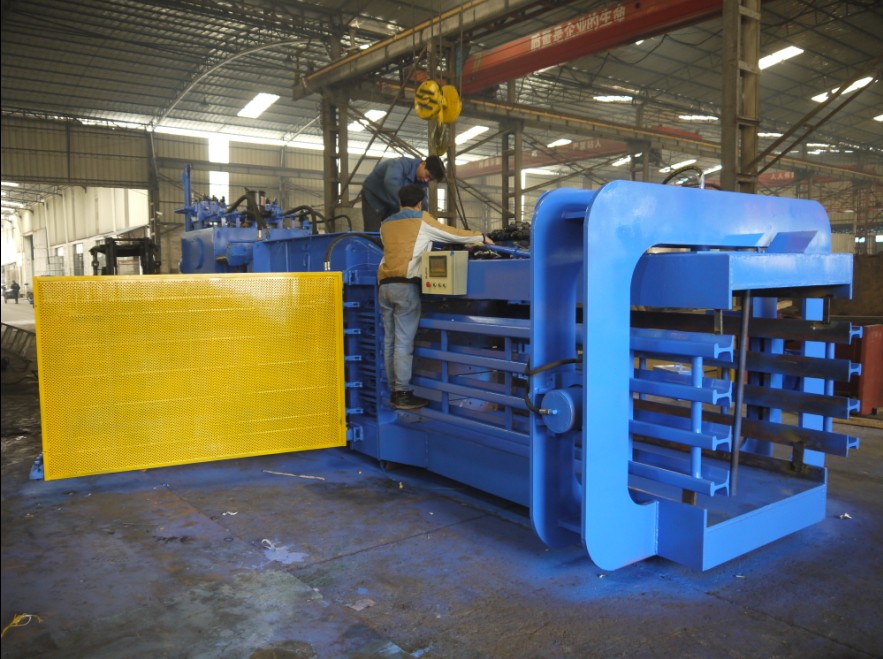

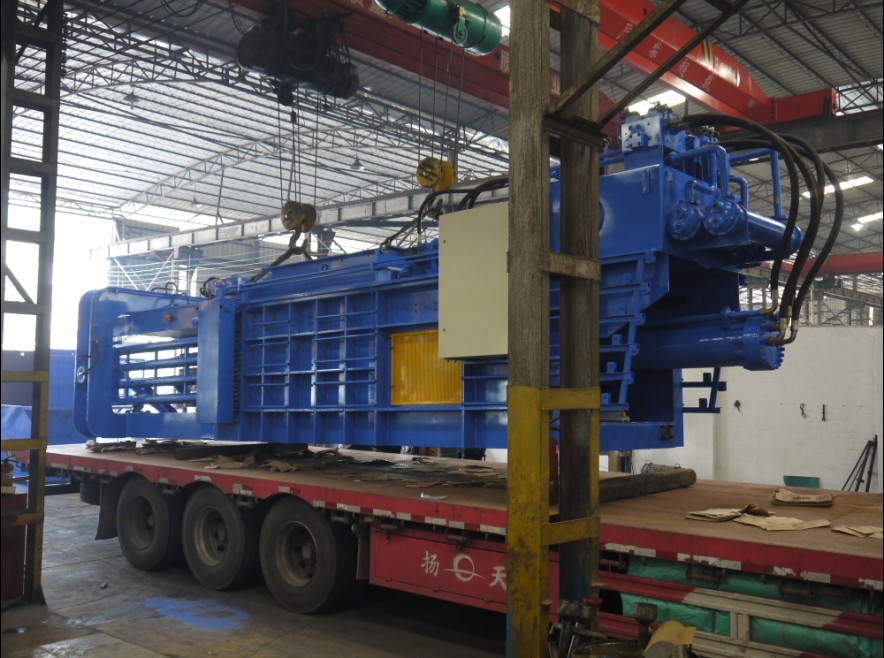

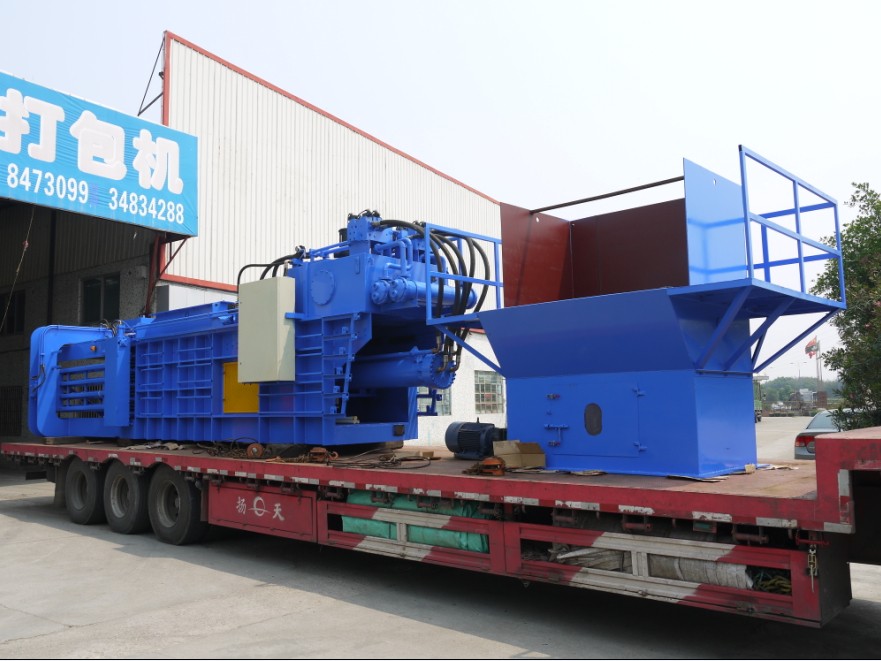

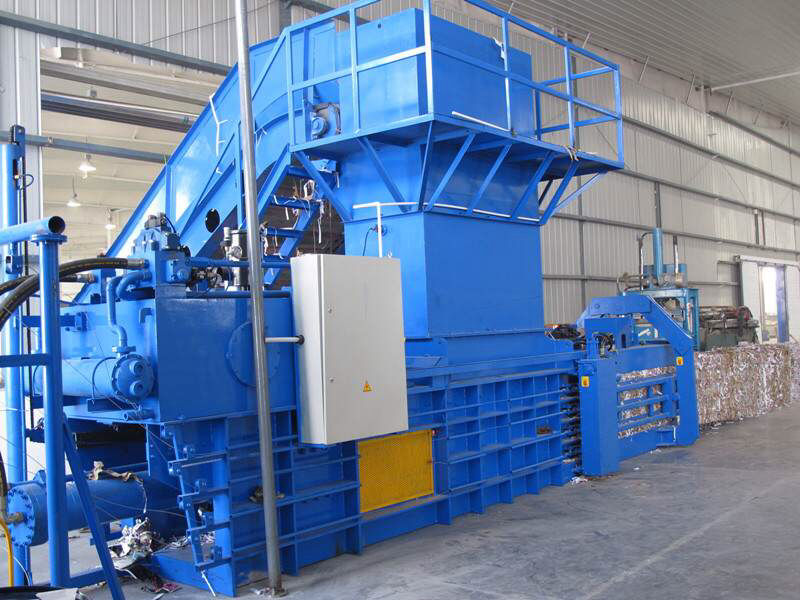

Automatic packing machine YZ-150T
Brand: YZ Automatic packing machine
Description: A series of YZ (automatic horizontal packing machine) especially suits the requirements of high efficient user. The machine specially used for packaging paper, cardboard, plastic film, carton and palm silk etc.. This series of machines can be under the control of PLC system automatic feeding, packaging, bundling. Scope of application: Carton plant and waste paper, waste paper processing. 1, automatic waste paper baler for environmental protection requirements, designed for paperboard, cartons and recycled materials recycling companies manufacturing professional design. The 2 locking design, can be allocated from the direction of the pressure. The 3.PLC control system, simple operation. The 4 storage box is provided with a paper feeding sensing infrared, the motor stops automatically adds no material, saving power. 5 baling length and density can be adjusted freely, packing speed, simple structure. 6 design easy to repair, low failure rate and easy cleaning and maintenance. The 7 independent computer full touch screen control panel, easy and convenient operation. Twisted pair and gearbox independent design, to prevent oil pollution damage, and easy cleaning wire threading system repair tool is simple, long mechanical life, unique mechanical design, the threading action accurate.
Specifications
Model AB-150
The host portion
Voltage 200V/380V/415V
Motor power 45KW*2
Automatic operation mode
Block size L (free) *W1100*H1250
Cylinder size with 300mm
Blanking dimension L1860*W1060mm
The maximum working pressure of 1500KN
Working pressure 17Mpa
The noise of 80 decibels
Fuel tank capacity: 1600L
Packing line number 5
Mass density of 520 ~ 550KG/m3
Packaging capacity of 18 ~ 20 tons / hour
Machine weight 35000kg
Machine dimension L10200*W16200*H5770mm
Conveyor belt
Motor power 7.5KW
Reducer XWD7-59
The width of 1600mm
Angle of 33 °
Cooling system
Motor power 0.25KW
Cooler model YW-870-3
Cooling tower size with 1200*H1900mm
